ACHMC (for AEFMs; under the hood)

This section explains the pre-processing steps under the hood of preprocess_all_for_atomic_chmc() using the same multispecies reaction network from the previous tutorial.

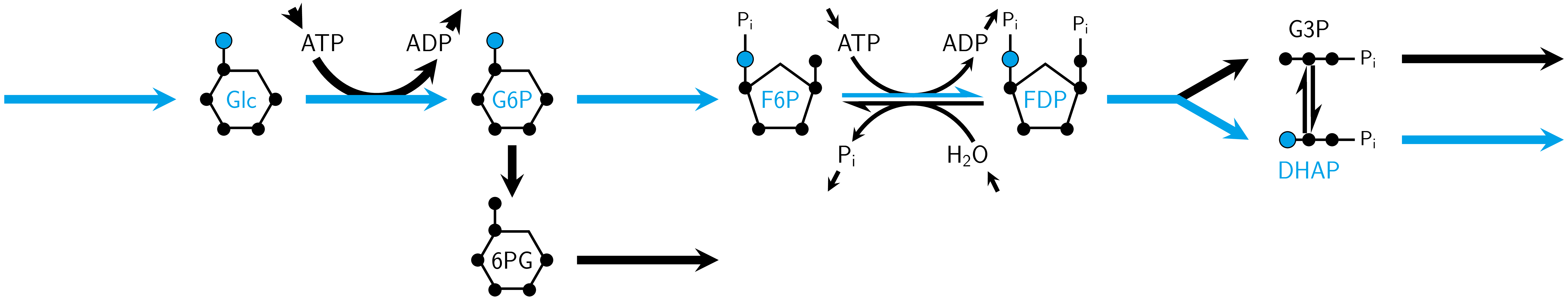

Toy multispecies network

Inputs

using MarkovWeightedEFMs
S = [#
  1 -1  0  0  0  0  0  0  0  0  0  0  0  0  0  0 # Glc
  0 -1  0  0  0 -1  0  0  0  0  0  0  1  0  0  0 # ATP
  0  1 -1  0 -1  0  0  0  0  0  0  0  0  0  0  0 # G6P
  0  1  0  0  0  1  0  0  0  0  0  0  0 -1  0  0 # ADP
  0  0  1 -1  0  0  0  0  0  0  0  0  0  0  0  0 # 6PG
  0  0  0  0  1 -1  1  0  0  0  0  0  0  0  0  0 # F6P
  0  0  0  0  0  0  1  0  0  0  0  0  0  0 -1  0 # Pi
  0  0  0  0  0  0 -1  0  0  0  0  0  0  0  0  1 # H2O
  0  0  0  0  0  1 -1 -1  0  0  0  0  0  0  0  0 # FDP
  0  0  0  0  0  0  0  1 -1  1 -1  0  0  0  0  0 # G3P
  0  0  0  0  0  0  0  1  1 -1  0 -1  0  0  0  0 # DHAP
]

v = [10, 10, 3, 3, 7, 8, 1, 7, 1, 1, 7, 7, 18, 18, 1, 1]

mets = [#
  "Glc",
  "ATP",
  "G6P",
  "ADP",
  "6PG",
  "F6P",
  "Pi",
  "H2O",
  "FDP",
  "G3P",
  "DHAP"
]

rxns = [#
  "Source Glc",
  "Hexokinase",
  "G6P dehydrogenase",
  "Sink 6PG",
  "Phosphoglucose isomerase",
  "6-phosphofructo-1-kinase",
  "Fructose 1,6-bisphosphatase",
  "Fructose-bisphosphate aldolase",
  "Triose phosphate isomerase",
  "Triose phosphate isomerase",
  "Sink G3P",
  "Sink DHAP",
  "Source ATP",
  "Sink ADP",
  "Sink Pi",
  "Source H2O"
]

smiles = [#
  "C([C@@H]1[C@H]([C@@H]([C@H](C(O1)O)O)O)O)O",
  "C1=NC(=C2C(=N1)N(C=N2)[C@H]3[C@@H]([C@@H]([C@H](O3)COP(=O)(O)OP(=O)(O)OP(=O)(O)O)O)O)N",
  "C([C@@H]1[C@H]([C@@H]([C@H](C(O1)O)O)O)O)OP(=O)(O)O",
  "C1=NC(=C2C(=N1)N(C=N2)[C@H]3[C@@H]([C@@H]([C@H](O3)COP(=O)(O)OP(=O)(O)O)O)O)N",
  "O=C1O[C@H](COP(=O)(O)O)[C@@H](O)[C@H](O)[C@H]1O",
  "C([C@H]([C@H]([C@@H](C(=O)CO)O)O)O)OP(=O)(O)O",
  "[O-]P(=O)([O-])[O-]",
  "O",
  "C(C1C(C(C(O1)(COP(=O)(O)O)O)O)O)OP(=O)(O)O",
  "C([C@H](C=O)O)OP(=O)(O)O",
  "C(C(=O)COP(=O)(O)O)O"
]

atom = :C # carbon atom type for AEFMs

We can check that the flux vector satisfies the steady state requirements.

all(S * v .== 0) # should evaluate as true

true

Pre-processing steps

Checking network structure

The following functions check for issues with the inputs. The first function find_atomic_chmc_input_errors identifies possible problems with the stoichiometry matrix and flux vector.

# Confirm there are no issues with stoichiometry matrix
errors = find_atomic_chmc_input_errors(S, v)

print(errors) # summary of errors associated with S/v

############################################################
## ERROR CHECKING STOICHIOMETRY MATRIX AND FLUX VECTOR #####
# (1)  SUM OF ABSOLUTE FLUX RECONSTRUCTION ERROR:
#      0.0
#      PASSED.
# (2)  REACTIONS THAT ARE DUPLICATES:
#      NONE.
#      PASSED.
# (3)  REACTIONS WTIH ZERO FLUX:
#      NONE.
#      PASSED.
# (4)  REACTIONS WTIH NEGATIVE FLUX:
#      NONE.
#      PASSED.
# (5)  INTERNAL REACTIONS W/ NON-INTEGER STOICHIOMETRIES:
#      NONE.
#      PASSED.
# (6)  UNIMOLECULAR SOURCE REACTIONS W/ STOICH == 1:
#      1, 13, 16
#      PASSED.
# (7)  UNIMOLECULAR SOURCE REACTIONS W/ STOICH != 1:
#      NONE.
#      PASSED.
# (8)  MULTIMOLECULAR SOURCE REACTIONS W/ STOICH == 1:
#      NONE.
#      PASSED.
# (9)  MULTIMOLECULAR SOURCE REACTIONS W/ STOICH != 1:
#      NONE.
#      PASSED.
# (10) UNIMOLECULAR SINK REACTIONS W/ STOICH == 1:
#      4, 11, 12, 14, 15
#      PASSED.
# (11) UNIMOLECULAR SINK REACTIONS W/ STOICH != 1:
#      NONE.
#      PASSED.
# (12) MULTIMOLECULAR SINK REACTIONS W/ STOICH == 1:
#      NONE.
#      PASSED.
# (13) MULTIMOLECULAR SINK REACTIONS W/ STOICH != 1:
#      NONE.
#      PASSED.
# (14) REACTIONS W/ NO SUBSTRATES OR PRODUCTS:
#      NONE.
#      PASSED.
# (15) # METABOLITES PARTICIPATING IN NO REACTIONS:
#      NONE.
#      PASSED.
# STATUS:
#      PASSED. THESE INPUTS SATISFY ATOMIC CHMC REQUIREMENTS.
############################################################

Correcting problems in network structure

Any problems, except for the steady state flux requirement, can be addressed via correct_atomic_chmc_input_errors.

# S and v have no errors so the inputs are returned
correct_atomic_chmc_input_errors(errors, S, mets, rxns)
# S, mets, rxns = correct_atomic_chmc_input_errors(errors, S, mets, rxns) # otherwise

Identifying unmappable reactions

The next function correct_atomic_chmc_input_smiles checks and fixes problems relating to the SMILES strings. These problems are caused by RXNMapper being unable to map atoms in reactions with pseudometabolites or pseudoreactions with non-integer stoichiometries (e.g. biomass reaction). RXNMapper also has a character limit on reaction SMILES strings. These unmappable reactions are removed and the flux is balanced with unimolecular flux entering/exiting the associated reaction substrates/products.

# Correct issues associated with RXNMapper character limit,
# pseudometabolites and pseudoreactions
S, v, mets, rxns, smiles, logs = correct_atomic_chmc_input_smiles(S, v, mets, rxns, smiles)

At this point, the SMILES strings (matching the updated mets if there were errors in the initial inputs) should be canonicalized. S is also converted to a Matrix{Int16} which is a requirement for subsequent functions.

smiles = canonicalize_smiles(smiles)

smiles

11-element Vector{String}:
 "OC[C@H]1OC(O)[C@H](O)[C@@H](O)[C@@H]1O"
 "Nc1ncnc2c1ncn2[C@@H]1O[C@H](COP(=O)(O)OP(=O)(O)OP(=O)(O)O)[C@@H](O)[C@H]1O"
 "O=P(O)(O)OC[C@H]1OC(O)[C@H](O)[C@@H](O)[C@@H]1O"
 "Nc1ncnc2c1ncn2[C@@H]1O[C@H](COP(=O)(O)OP(=O)(O)O)[C@@H](O)[C@H]1O"
 "O=C1O[C@H](COP(=O)(O)O)[C@@H](O)[C@H](O)[C@H]1O"
 "O=C(CO)[C@@H](O)[C@H](O)[C@H](O)COP(=O)(O)O"
 "O=P([O-])([O-])[O-]"
 "O"
 "O=P(O)(O)OCC1OC(O)(COP(=O)(O)O)C(O)C1O"
 "O=C[C@H](O)COP(=O)(O)O"
 "O=C(CO)COP(=O)(O)O"

Atom mapping reactions

The reaction SMILES strings rs are next constructed from the metabolite SMILES and the atom mapping is performed via RXNMapper and stored in ms.

# Construct atom traced SMILES strings
rs, ms = map_reaction_strings(S, smiles, rxns, false)

rs

16-element Vector{String}:
 ">>OC[C@H]1OC(O)[C@H](O)[C@@H](O)[C@@H]1O"
 "OC[C@H]1OC(O)[C@H](O)[C@@H](O)[" ⋯ 167 bytes ⋯ "(O)OP(=O)(O)O)[C@@H](O)[C@H]1O"
 "O=P(O)(O)OC[C@H]1OC(O)[C@H](O)[" ⋯ 34 bytes ⋯ "O)(O)O)[C@@H](O)[C@H](O)[C@H]1O"
 "O=C1O[C@H](COP(=O)(O)O)[C@@H](O)[C@H](O)[C@H]1O>>"
 "O=P(O)(O)OC[C@H]1OC(O)[C@H](O)[" ⋯ 30 bytes ⋯ "](O)[C@H](O)[C@H](O)COP(=O)(O)O"
 "Nc1ncnc2c1ncn2[C@@H]1O[C@H](COP" ⋯ 163 bytes ⋯ ")OCC1OC(O)(COP(=O)(O)O)C(O)C1O"
 "O.O=P(O)(O)OCC1OC(O)(COP(=O)(O)" ⋯ 43 bytes ⋯ "COP(=O)(O)O.O=P([O-])([O-])[O-]"
 "O=P(O)(O)OCC1OC(O)(COP(=O)(O)O)" ⋯ 19 bytes ⋯ ")COP(=O)(O)O.O=C(CO)COP(=O)(O)O"
 "O=C[C@H](O)COP(=O)(O)O>>O=C(CO)COP(=O)(O)O"
 "O=C(CO)COP(=O)(O)O>>O=C[C@H](O)COP(=O)(O)O"
 "O=C[C@H](O)COP(=O)(O)O>>"
 "O=C(CO)COP(=O)(O)O>>"
 ">>Nc1ncnc2c1ncn2[C@@H]1O[C@H](COP(=O)(O)OP(=O)(O)OP(=O)(O)O)[C@@H](O)[C@H]1O"
 "Nc1ncnc2c1ncn2[C@@H]1O[C@H](COP(=O)(O)OP(=O)(O)O)[C@@H](O)[C@H]1O>>"
 "O=P([O-])([O-])[O-]>>"
 ">>O"

ms

16-element Vector{String}:
 ""
 "[OH:5][CH2:6][C@H:7]1[O:8][CH:9" ⋯ 587 bytes ⋯ "H:40]([OH:41])[C@H:42]1[OH:43]"
 "[O:8]=[P:7]([OH:9])([OH:10])[O:" ⋯ 177 bytes ⋯ "H:13]([OH:14])[C@H:15]1[OH:16]"
 ""
 "[O:14]=[P:13]([OH:15])([OH:16])" ⋯ 178 bytes ⋯ "P:13](=[O:14])([OH:15])[OH:16]"
 "[NH2:1][c:2]1[n:3][cH:4][n:5][c" ⋯ 640 bytes ⋯ "CH:44]([OH:45])[CH:46]1[OH:47]"
 "[OH2:20].[O:17]=[P:18]([OH:19])" ⋯ 250 bytes ⋯ "P:18]([O-:19])([O-:20])[O-:21]"
 "[O:18]=[P:17]([OH:19])([OH:20])" ⋯ 227 bytes ⋯ "P:17](=[O:18])([OH:19])[OH:20]"
 "[O:4]=[CH:3][C@H:2]([OH:1])[CH2" ⋯ 73 bytes ⋯ ":6][P:7](=[O:8])([OH:9])[OH:10]"
 "[O:1]=[C:2]([CH2:3][OH:4])[CH2:" ⋯ 73 bytes ⋯ ":6][P:7](=[O:8])([OH:9])[OH:10]"
 ""
 ""
 ""
 ""
 ""
 ""

Identifying all source metabolite-atom positions

The following code extracts the source metabolite indices in mets and computes the total number of carbon atoms of interest.

# Total number of atom type across all metabolites
atom_max = get_max_atoms(smiles, atom)

# Identify source metabolite indices and copies of atom
src_mets = get_source_metabolites(S)

# Number of carbon atoms in each source metabolite
max_src_mets_carbon = atom_max[src_mets]

# Source metabolites
mets[src_mets]

3-element Vector{String}:
 "Glc"
 "ATP"
 "H2O"

# Carbons in each source metabolite
max_src_mets_carbon

3-element Vector{Int64}:
  6
 10
  0

Enumerating metabolite-atom mappings across reactions

We then precompute an atom tracing dictionary mapping the (carbon) atom in the stoichiometric copy of a substrate to its product atom position across each reaction.

# Precompute atom tracing dictionary
D_C = precompute_atom_tracing_dictionary(S, ms, atom_max, atom) # S must be Matrix{Int16}

D_C

Dict{NTuple{4, Int64}, Tuple{Int64, Int64}} with 62 entries:
  (3, 2, 1, 3)  => (5, 2)
  (2, 2, 1, 6)  => (4, 2)
  (1, 2, 1, 2)  => (3, 2)
  (2, 5, 1, 2)  => (4, 5)
  (9, 1, 1, 7)  => (6, 2)
  (6, 1, 1, 6)  => (9, 2)
  (9, 1, 1, 8)  => (10, 1)
  (3, 3, 1, 5)  => (6, 2)
  (2, 9, 1, 6)  => (4, 9)
  (3, 4, 1, 5)  => (6, 1)
  (9, 2, 1, 7)  => (6, 1)
  (2, 1, 1, 2)  => (4, 1)
  (6, 2, 1, 6)  => (9, 1)
  (9, 2, 1, 8)  => (10, 2)
  (2, 8, 1, 2)  => (4, 8)
  (3, 6, 1, 3)  => (5, 4)
  (2, 6, 1, 6)  => (4, 6)
  (2, 10, 1, 2) => (4, 10)
  (1, 6, 1, 2)  => (3, 6)
  ⋮             => ⋮

Conclusion

All of the code/functions described above are wrapped into preprocess_all_for_atomic_chmc(). If this wrapper function fails, you may need to step through these individual pre-processing functions to identify the error.
